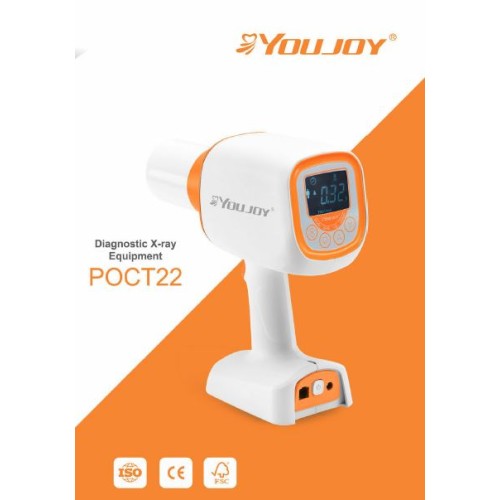

PORTABLE XRAY GUN TYPE

High frequency chairside x-ray machine

Less radiation to the patient & operator

Compact & single-handed device

2ma tube current,ensures higher performance and high definition imaging

Adopt canon tube with focus spot 0.4mm, Anode angle 12.5°

Digitally controlled device provides higher accuracy &stability

Wide screen display for easy operation

Technical specification

Model: YOU98 (P)

Voltage: 70kv±10%

Current:2ma±20%

Rating voltage: 100v-240v

Frequency: 50hz-60hz

Tube: canon d-045

Anode angle: 12.5°

Focal spot:0.4mm

Exposure time range: 0.04s-2.0s

Radiation leakage: 1 meter ≤ 0.25mgy/h

Machine weight: 1.7kg Relative humidity: 30%rh~75%rh
